How to Perform Scenario Based Health Check on Backends?
About
What is Scenario Based Health Check?
Health checks on TR7 can be performed based on different scenarios. Within a single Backend Service, health checks can be done for different paths simultaneously, or more generally, TCP, Ping, and HTTP health checks can be conducted simultaneously, and/or operators checks can be performed. Parameters such as period, timeout, required success, and required failures can be controlled through the scenario profile.
Interface
Perform Scenario Based Health Check
Step > 1
Follow the steps "Traffic Manager > Profiles > Health Checks > Add". In the window that opens, select "Scenario" as the "Check Type".
Step > 2
Health checks are added from the "Scenario" section. By linking these health checks with and/or operators, a scenario-based health check profile is created.
Step > 3

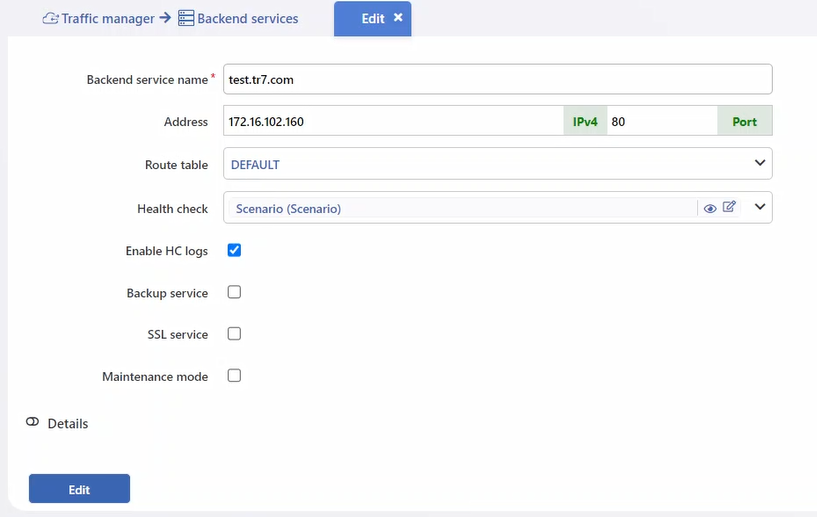

To use the created profile in a desired Backend Service, follow the steps "Traffic Manager > Backend Services" to open the edit form of the relevant Backend Service or to add a new Backend Service. The scenario-based profile created earlier is selected as the "Health Check".
When the relevant Backend Service is clicked, the health check results for that service can be viewed in the window that opens on the right side.
