GTM Logs
About
On the GTM Logs screen, it is possible to view the system and user logs of the TR7 GTM. Various information such as user actions, modifications, and health statuses can be filtered and reviewed retrospectively through the GTM Logs screen.
Interface

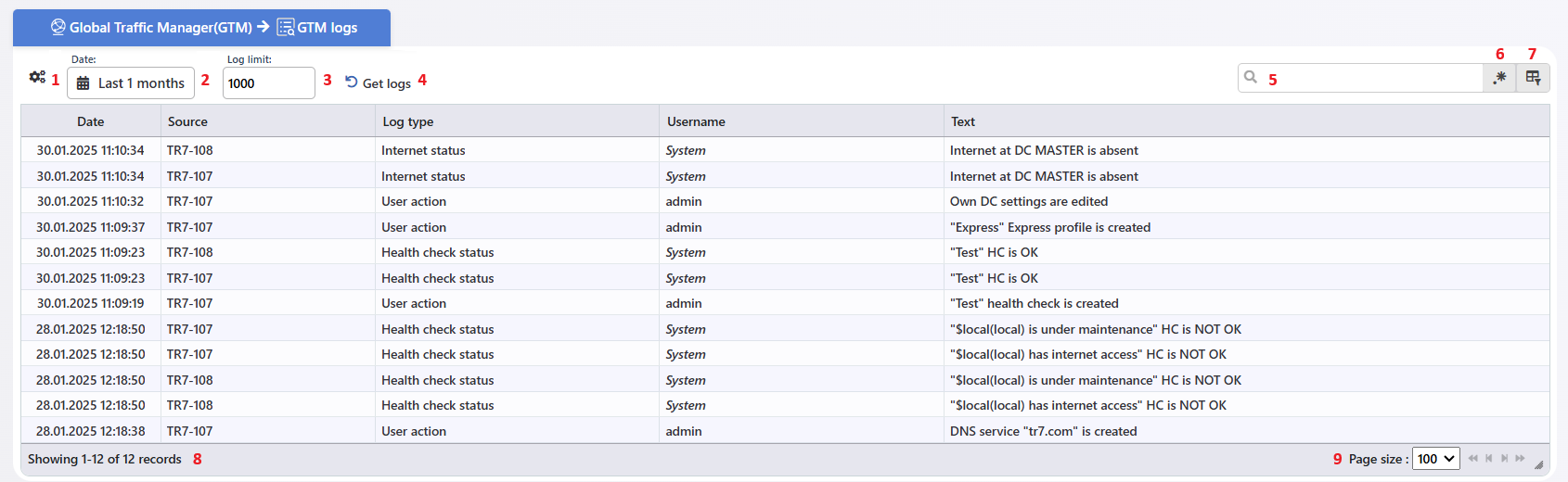

GTM Logs Screen
The GTM logs on the TR7 ASP device can be reviewed by following the steps "Global Traffic Manager (GTM) > GTM Logs."
- 1 (Information to be Displayed in the Table)
In the table containing GTM logs, it is possible to select which information will be displayed or hidden.
Selectable and Default Selected Information;
- Date
- Log Type
- Text
- Source
- Username
- 2 (Time Range)
The time range for displaying GTM logs can be selected.
- 3 (Log Limit)
Specifies the maximum number of logs to be displayed within the selected time range.
- 4 (Get Logs)
By clicking the "Get Logs" button, the logs for the specified time range are retrieved.
- 5 (Search)
It is used to search for all expressions in the table.
- 6 (RegExp Search)
It is used to search for all expressions in the table using regular expressions (regexp).
- 7 (Column Based Search)
It is used to search for all expressions in the table on a column basis.
- 8 (Page Information)
The opened list displays information about how many GTM logs there are and how many of them will be shown.
- 9 (Page Size)
In the opened list, the maximum number of GTM logs to be listed can be selected. Page transitions can be made using the arrow icons.
