Collective Learning Tracking
About
Through the Collective Learning Logs tab, logs that will be automatically taught by WAF when requests to the vService comply with conditions specified in Collective Learning as per configurations made on the WAF Management screen are accessed. For detailed information about Collective Learning Click here.
Helpful Information
To view Collective Learning Tracking Logs on TR7 ASP, Automatic Learning > Collective Learning must be activated in the WAF Management screen of the relevant vServices. In Collective Learning Tracking Logs, the tracking of logs is done either in percentage (%) or manually taught. The taught requests are displayed in the Learning Logs.
Applicable vServices
- HTTP (WAF)
- L7 TCP
- Network
Interface
Viewing Collective (AI) Learning Logs

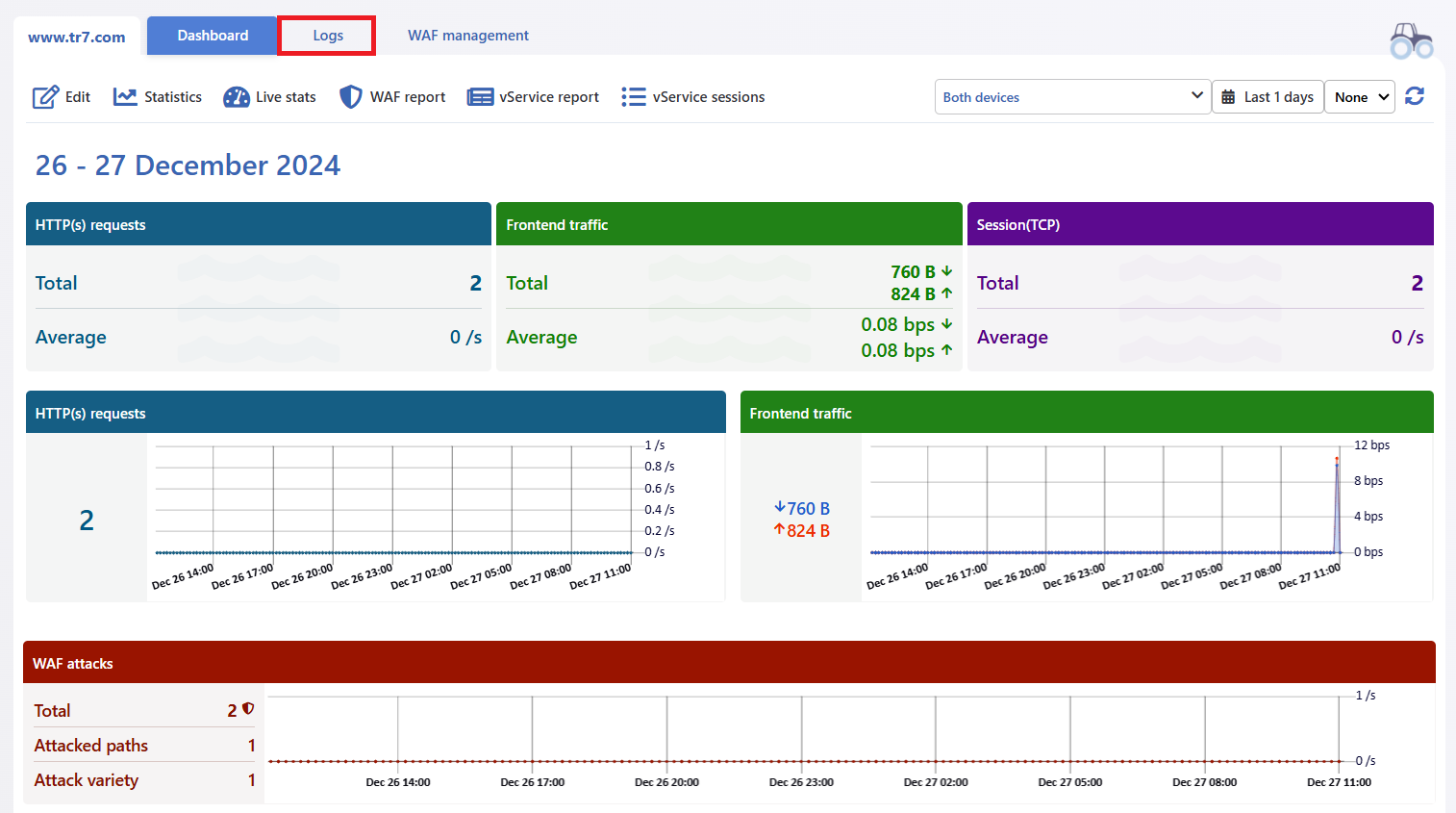

On the TR7 ASP web interface, open the monitor screen of the vService for which logs are to be controlled. Then click on the Logs tab.
On the displayed screen, select CollectiveLearning Tracking and click the Get Logs button to view the logs.ZZX
Interface
Collective Learning Logs Listing Screen
- 1 (Information to be Displayed in the Table)
Select which information to show or hide in the table listing CollectiveLearning Logs.
Options for selectable and default selected information;
- Learning Type
- Request
- Country
- Path
- Argument
- Learning Progress
- Client
- Host Group
- Location
- Description
- 2 (Log Type Selection)
Select Collective Learning Tracking for displaying Collective Learning Logs.
- 3 (Get Logs)
Click the Get Logs button to list logs related to the made requests.
- 4 (Learn Selected)
Used to learn the selected expressions in the table.
- 5 (Search)
Used to search for all expressions in the table.
- 6 (RegExp Search)
Used to regexp search for all expressions in the table.
- 7 (Column Based Search)
Used to column based search for all expressions in the table.
- 8 (Page Information)
Information on how many Collective Learning Logs are open and how many are listed is available.
- 9 (Page Size)
Select the maximum number of Collective Learning Logs to be listed on the open list. Navigation between pages can be done using arrow symbols.
- Preview of Selected Collective Learning Log
When any Collective Learning log is clicked, a window opens on the right side of the screen showing details related to the request.
