Clients
About
What are Clients?
Clients refer to the Client management platform where hardware and network objects of the TR7 ASP device are authorized and assigned to users, allowing them to manage their own TR7 ASP products in isolated environments. Organizations can define resources, IP, vServices, and license models for their Clients.
How to Add Clients?
To add a new client, navigate to the Settings > User Management > Clients > Add tab from the TR7 ASP web interface.
Additional Information
For TR7 ASP devices operating as clusters, there is no need to perform Client addition separately. Changes made on the interface of the selected TR7 ASP device as the 1st device are automatically reflected on the 2nd TR7 ASP device.
Interface

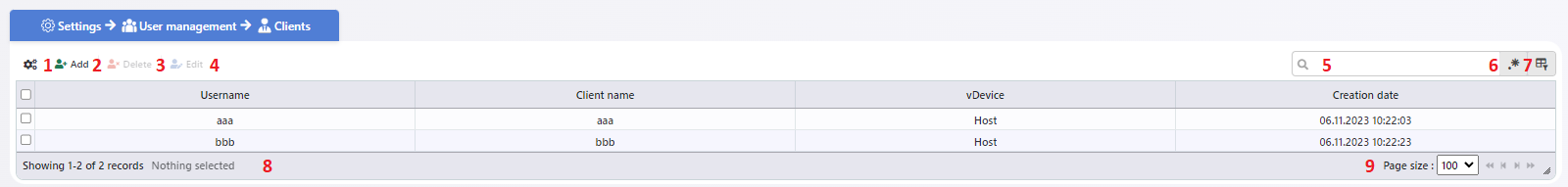

Clients Listing Screen
By following the steps "Settings > User Management > Clients" you can access a list of all Clients added to the TR7 ASP device. This screen allows you to perform Client addition, editing, and deletion operations.
- 1 (Information to be Displayed in the Table)
Choose which information will be displayed in the table listing Clients.
Selectable and default information includes;
- Username
- Client Name
- vDevice
- Creation Date
- 2 (Add)
Click the Add button to open a form for creating a new Client.
- 3 (Delete)

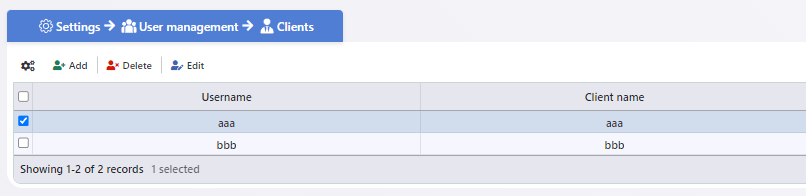

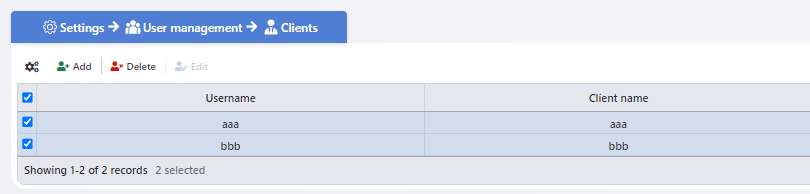

Select one or more Clients and click the Delete button to delete the respective Client on the TR7 ASP device.
- 4 (Edit)
Click the Edit button to open the editing screen for the selected Client.
- 5 (Search)
Used to search all expressions in the table.
- 6 (RegExp Search)
Used to regexp search for all expressions in the table.
- 7 (Column Based Search)
Used to column based search for all expressions in the table.
- 8 (Page Information)
Information about how many Clients are displayed in the open list and how many Clients are listed. When a Client is selected from the left for deletion, the information of the selected Clients is also displayed here.
- 9 (Page Size)
Select how many Clients will be listed in the open list. You can switch between pages with arrow icons.
Interface

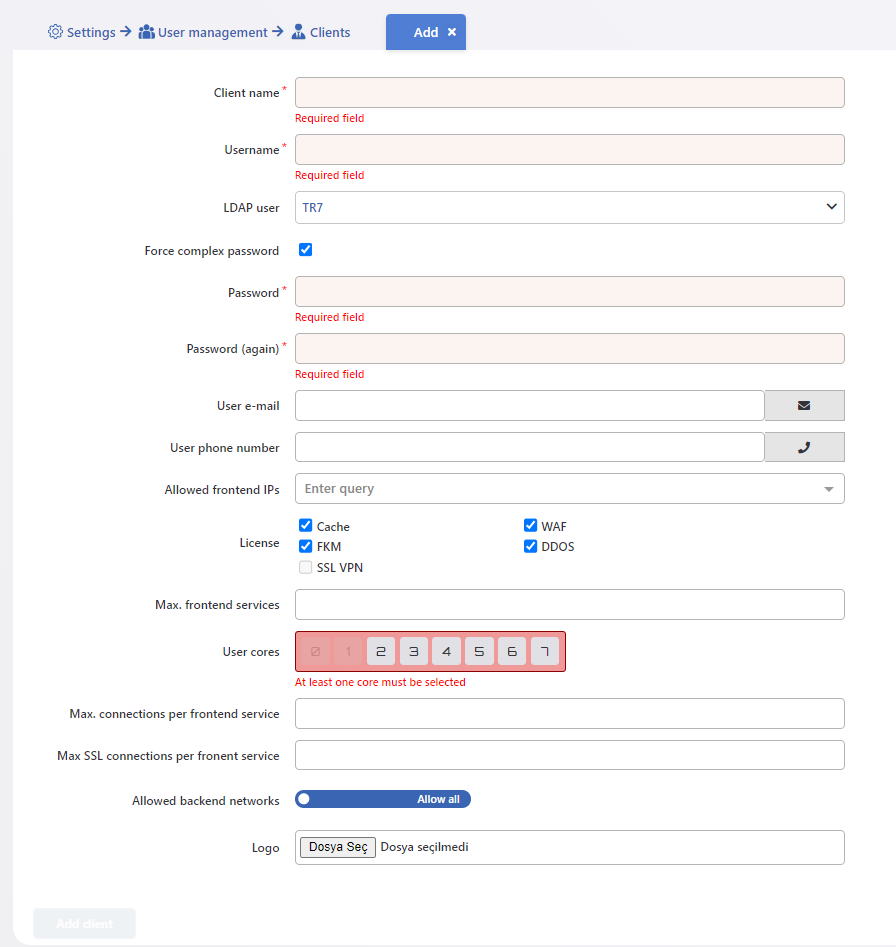

Client Adding Form
By following the steps "Settings > User Management > Clients > Add", you can add a new Client to the TR7 ASP device.
- Client Name
Enter the name of the Client to be added to the TR7 ASP device.
- User Name
Enter the username to be used for login by the Client to be added to the TR7 ASP device.
- LDAP User
Select the authentication source for the Client to be added to the TR7 ASP device. Authentication sources are;
- Force Complex Password
It is selected by default. In this way, the password to be created must consist of at least 1 special character (!%^# etc.), at least 1 lowercase letter, at least 1 uppercase letter, and at least 1 digit. The password length must be between 8 - 32 characters.
- Password
Enter the password of the Client to be added to the TR7 ASP device. When creating a user with LDAP or Radius Authentication Source, the password information is the one defined in your LDAP or Radius servers.
- Password (Again)
Re-enter the password information.
- User E-mail
Enter the email address of the Client to be added to the TR7 ASP device. It is not mandatory.
- User Phone Number
Enter the mobile number of the Client to be added to the TR7 ASP device It is not mandatory.
- vDevice
Select the vDevice where the Client will use their resources on the TR7 ASP device. For details about vDevice click here.
- Allowed Frontend IPs
Access a list of IP addresses added to the TR7 ASP device. Here, you can select the IP addresses that the added Client can use.
- License
Select the license models to be assigned to the Client.
- Max. vServices
Determine the maximum number of vServices the Client can add.
- User Cores
Select the Core the Clint can use.
- Max. Connections per vService
Determine the maximum connection per in vServices added by the Client.
- Max SSL Connections per vService
Determine the maximum SSL connection per in vServices added by the Client.
- Allowed Backend Networks
Used to restrict usage in the Allowed Backend Networksadded by the Client will be used.
- Logo
Logo changes are made by clicking the Choose File button or by drag and drop method. At the same time, the uploaded Logo is also visible in WAF and vServices Reports.
- Add Client
Click the Add Client button to add a new Client.
