vDevices
About
vDevices are a software layer used to create multiple completely isolated networks on the TR7 ASP device. vDevices are used to provide protection against potential DDoS attacks. Each network can have its own default gateway. vDevices can be created in unlimited numbers as long as the license and physical hardware allow it. Each vDevices can be allocated network interfaces, processor cores, memory, and disk space as long as the physical hardware permits.
How to Add?
To add a new vDevices, navigate to the Settings > vDevices > Add tab from the TR7 ASP web interface.
Additional Information
In TR7 ASP devices that work as a cluster, there is no need to separately configure vDevices (such as creating, editing and deleting) settings. Changes made to the interface of the selected TR7 ASP device as the 1st device automatically apply to the 2nd TR7 ASP device.
Interface
vDevices Listing Screen
By following the steps Settings > vDevices, you can access the list of all vDevices attached to the TR7 ASP device. On this screen, you can perform vDevices addition, deletion, and editing operations.
- 1 (Information to be Displayed in the Table)
Select which information will be displayed in the table listing vDevices.
Information that can be selected and comes selected as default:
- No
- Status
- CPU Cores
- Description
- vDevice Name
- Memory
- Interfaces
- 2 (Add)
Click the Add button to open a form for creating a new vDevices.
- 3 (Delete)
By selecting one or more vDevices and clicking the Delete button, the relevant vDevices are deleted from the TR7 ASP device.
- 4 (Edit)
Click the Edit button to edit the relevant vDevices.
- 5 (Search)
Used to search for all expressions in the table.
- 6 (RegExp Search)
Used to regexp search for all expressions in the table.
- 7 (Column Based Search)
Used to column based search for all expressions in the table.
- 8 (Page Information)
The information about how many vDevices are available in the opened list and how many vDevices are listed is available here. When vDevices are selected for deletion, the information of the selected vDevices is also displayed here.
- 9 (Page Size)
Select how many vDevices will be listed in the opened list. You can switch between pages using arrow icons.
- Preview of the Selected vDevices
After following the steps "Settings > vDevices", when you click on any vDevices, a window opens below with information about the relevant device.
Interface

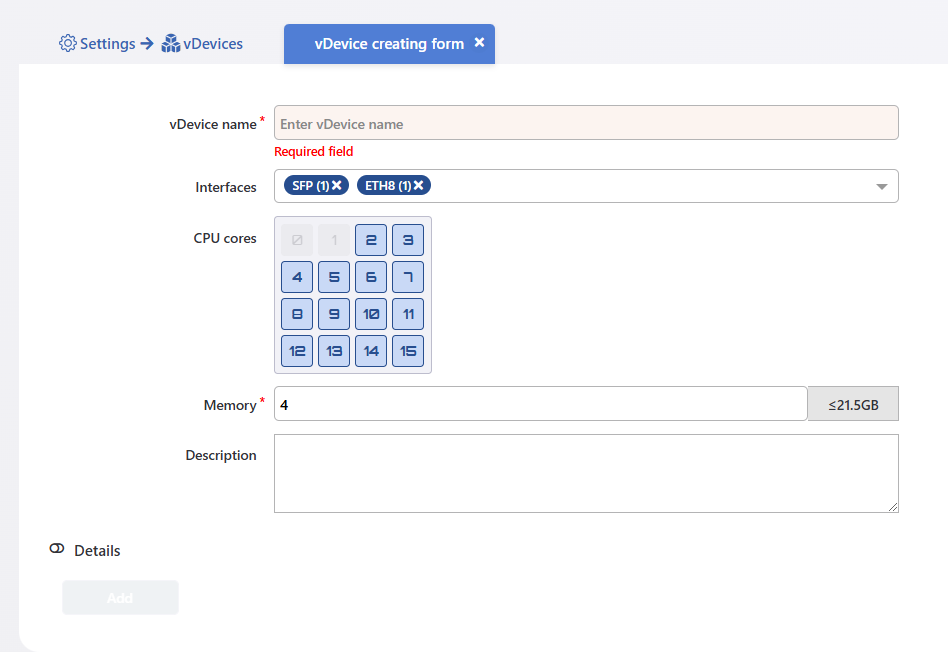

vDevices Adding Form
Follow the steps "Settings > vDevices > Add" add to add a new vDevices to the TR7 ASP device.
- vDevice Name
Provide a name for the vDevices to be created.
- Interfaces
Select the Network Interfaces to be used by the vDevices to be created.
- CPU Cores
Select the Processor Cores to be used by the vDevices to be created.
- Memory
Select the Memory to be used by the vDevices to be created.
- Description
Select a description for the vDevices to be created. It is not mandatory.
- Details
By activating the Details button, the features listed below can be used.
o vDevice Size
Determine the disk space allocated for applications.
o Log and Report Field
Determine the disk space allocated for logging and reporting.
- Add
Click the Add button to create a vDevices.
Interface
Display of vDevices in the Network Menu
After creating a vDevices, the Network tab is opened from the left menu on the TR7 ASP web interface. It is shown that a new Network tab is assigned to the created vDevices. Interfaces, Firewall, Route Table, DOS/DDOS Mitigation and Device DNS of the relevant vDevices are displayed.
Click on the Interfaces tab to access the interfaces assigned to the relevant vDevices. Click here for operations that can be performed under the Network tab.
