Quarantine

About

Quarantine action is generally used to track desired requests and make unaccesible them to the vServices when the specified conditions are met.

How to Add?

To add a Quarantine action from TR7 ASP web interface, "Traffic Manager > Traffic Manipulation > Actions > Add" steps are followed. At the current page Quarantine is selected as an Action Type and the following form is shown.

Applicable vServices

  • HTTP
  • L7 TCP
  • Network

Interface

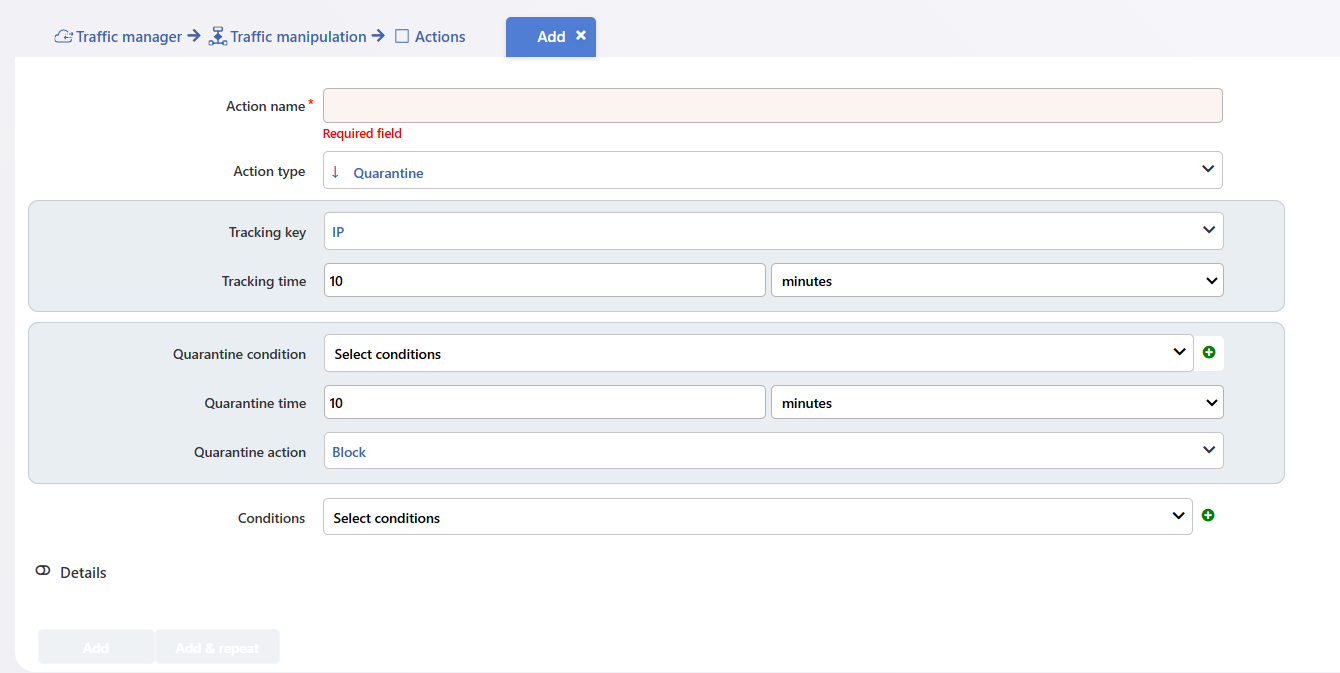

Quarantine Adding Form

LOGO

Quarantine Action Adding Form

- Action Name


Name for the action is entered.

- Action Type


Quarantine is selected.

- Tracking Key

Specify a key to track the upcoming requests.

You can specify the tracking Key manually with the Quarantine Keys to Track. More then one is also possible.

LOGO

- Tracking Time


Determine the period for tracking the value in Tracking Key.

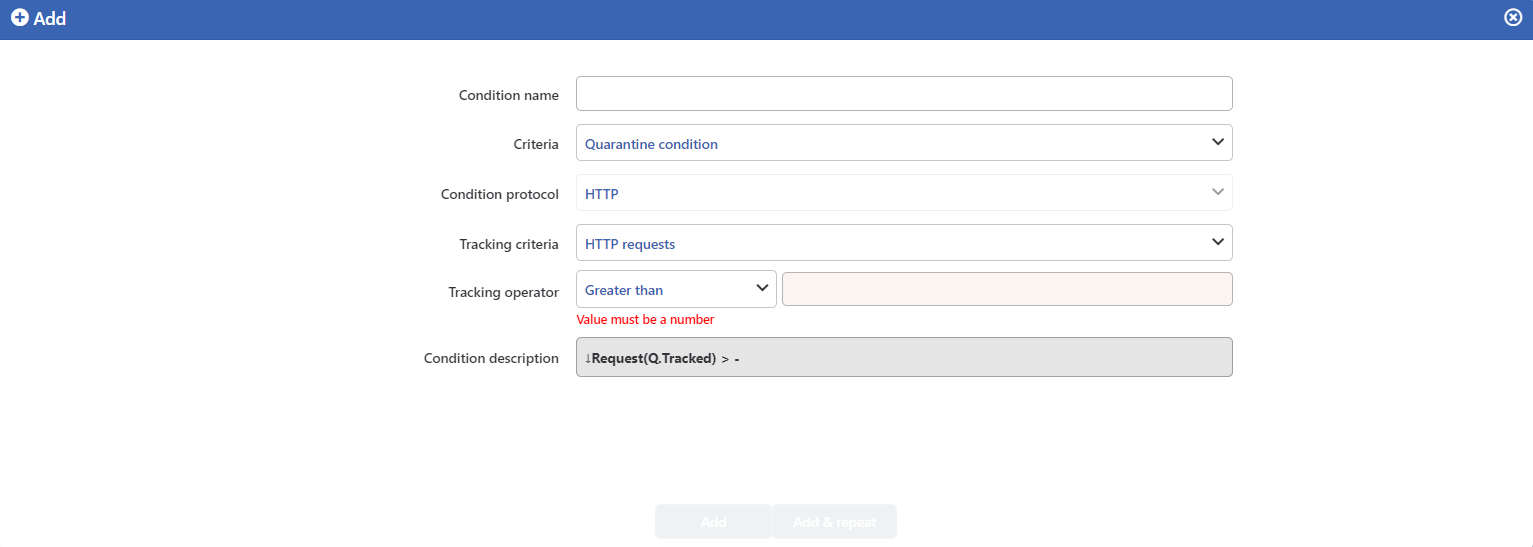

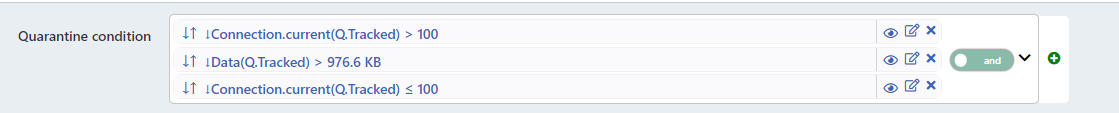

- Quarantine Condition


Choose the condition to track the upcoming requests. More then one is also possible.

LOGO

LOGO

- Quarantine Time


The duration of the quarantine is specified.

- Quarantine Action


Choose the action that you want to apply when the specified conditions met.

By selecting Block, when the conditions are met, the client is blocked directly.

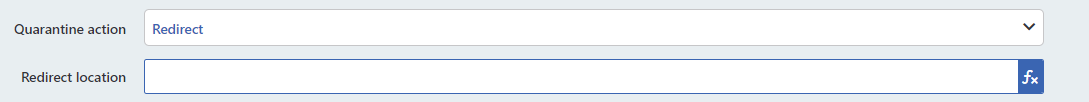

By selecting Redirect, when the conditions are met, the client is redirected to the URL entered in the Redirect Location tab.

LOGO

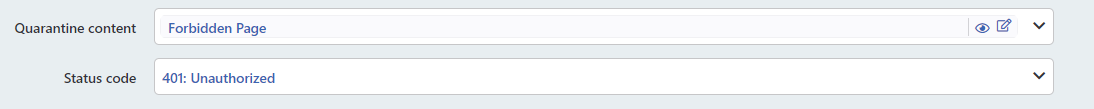

By selecting Show Content, when the conditions are met, specified page in the Quarantine Content tab is shown to the client.

LOGO

- Conditions


Condition(s) that will trigger the action is/are selected. For detailed information about conditions, click here.

- Form Buttons

Add button can be clicked to add the configured action.

Add & Repeat button can be clicked to add the configured action. New similar actions can also be added without losing the current configuration by clicking this button. The following alert is shown when the button is clicked.

LOGO
