Redirect to HTTPS
About
The Redirect to HTTPS action is typically used to redirect specific connections to HTTPS only when a request is made to the vService under certain conditions.
How to Add?
To add the Redirect to HTTPS action from TR7 ASP web interface, "Traffic Manager > Traffic Manipulation > Actions > Add" steps are followed. At the current page Redirect to HTTPS is selected as an Action Type and the following form is shown.
Applicable vServices
- HTTP
- L7 TCP
- Network
Interface

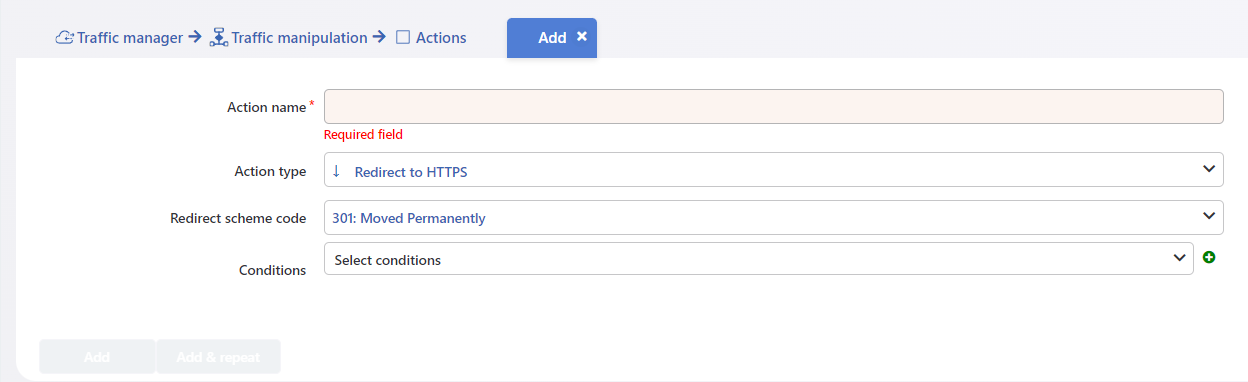

Redirect to HTTPS Form
- Action Name
Name for the action is entered.
- Action Type
"Redirect to HTTPS" is selected.

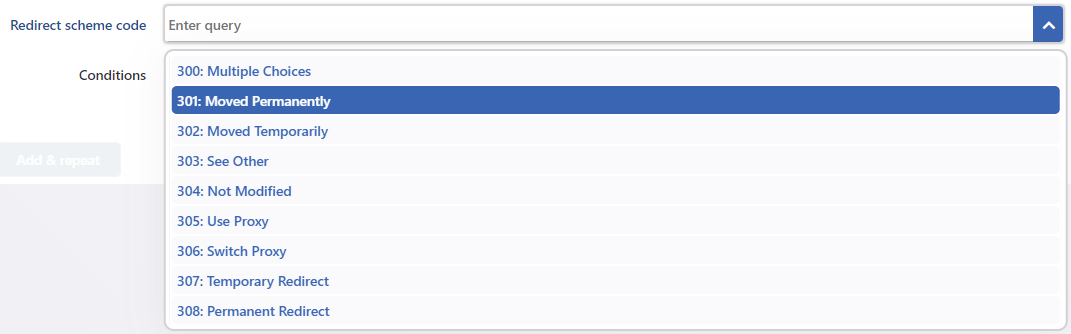

- Redirect Scheme Code
Select the HTTP status code with which the client will be redirected. By default,HTTP 301 status Code is selected. Below is a list of HTTP status codes supported by TR7.
- Full List of HTTP Status Codes Supported by TR7
| Status Code | Status | Description |
|---|---|---|
| 300 | Redirect | Multiple Choices |
| 301 | Redirect | Moved Permanently |
| 302 | Redirect | Found (Previously "Moved temporarily") |
| 303 | Redirect | See Other |
| 304 | Redirect | Not Modified |
| 305 | Redirect | Use Proxy |
| 306 | Redirect | Switch Proxy Status |
| 307 | Redirect | Temporary Redirect |
| 308 | Redirect | Permanent Redirect |
- Conditions
Condition(s) that will trigger the action is/are selected. For detailed information about conditions, click here.
- Form Buttons
Add button can be clicked to add the configured action.
Add & Repeat button can be clicked to add the configured action. New similar actions can also be added without losing the current configuration by clicking this button. The following alert is shown when the button is clicked.
