Collective Analysis & Learning
About

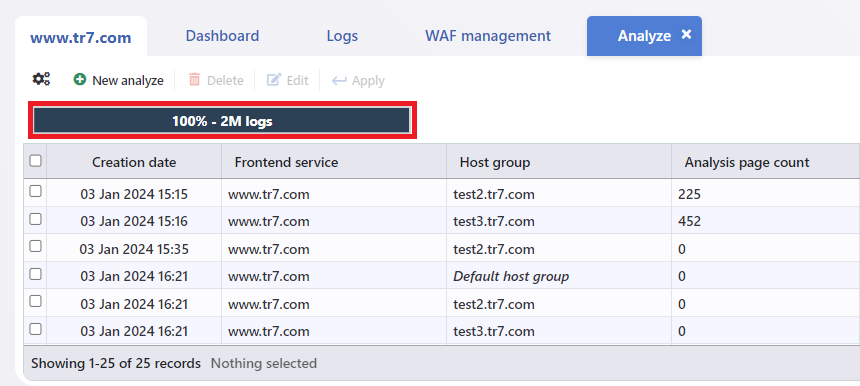

By clicking on the Collective Analysis & Learning button, you can initiate the analysis process for all Virtual Host Groups in the respective vService in Collective. The progress of the initiated analyses can be tracked as a percentage (%).
Clicking on the home icon opens a screen where all previously conducted analyses for vServices and Virtual Host Groups are listed. Here, you can perform actions such as deleting and editing previously conducted analyses.
For detailed information about the Analysis & Learning process click here.
Interface
1- Analysis Listing Screen
This page displays and manages all previously created analyses for vServices and Virtual Host Groups.
- 1 (Information to be Displayed in the Table)
You can select which information is displayed in the table listing Virtual Host Groups.
The available and default selected information includes;
- Creation Date
- Host Group
- Current Page Count
- Parsed Logs
- vService
- Analysis Page Count
- Used Logs
- 2 (New Analyze)
Used to initiate a new analysis process in the desired vService and Virtual Host Group. For detailed information about the Analysis & Learning process click here.
- 3 (Delete)
By selecting one or more analyses and clicking the Delete button, the relevant analyses are deleted from the TR7 ASP device.
- 4 (Edit)
Clicking the Edit button opens the editing screen for the respective analysis.
- 5 (Apply)
Used to apply rules to completed services.
- 6 (Search)
Used to search for all expressions in the table.
- 7 (RegExp Search)
Used to regexp search for all expressions in the table.
- 8 (Column Based Search)
Used to column based search for all expressions in the table.
- 9 (Page Information)
Displays the number of analyses in the list and how many are currently listed when analyses are selected on the left. This is also where you can view information about the selected analyses for deletion.
- 10 (Page Size)
Selects the maximum number of analyses to be listed. You can navigate between pages using arrow symbols.

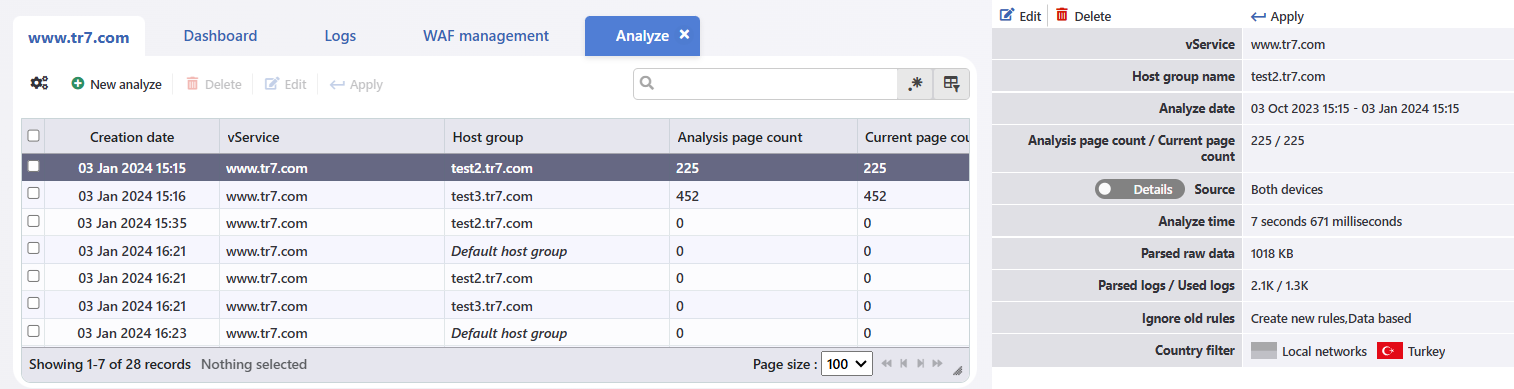

- Preview of the Selected Analysis
Clicking on any analysis opens a window on the right side of the screen with information about the selected analysis.
Actions such as deleting, editing and applying the selected analysis can be performed with the buttons in the opened window.
The preview can be closed by clicking the (x) button in the upper right corner of the window.
Interface
2- Collective Analysis & Learning
Used to initiate a new analysis in all or selected Virtual Host Groups for the selected vService.
