Network vServices

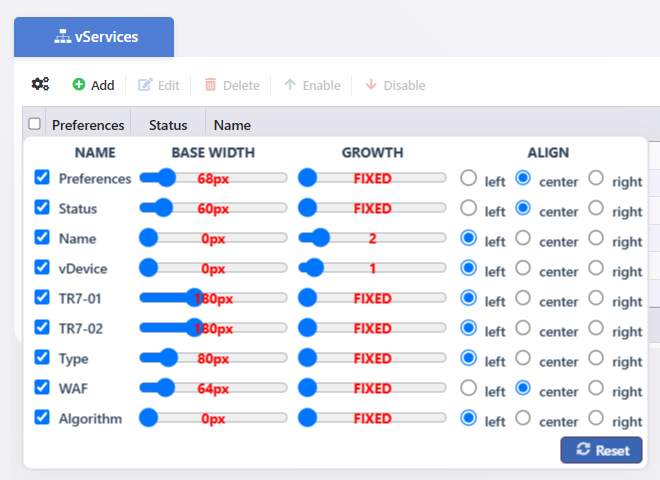

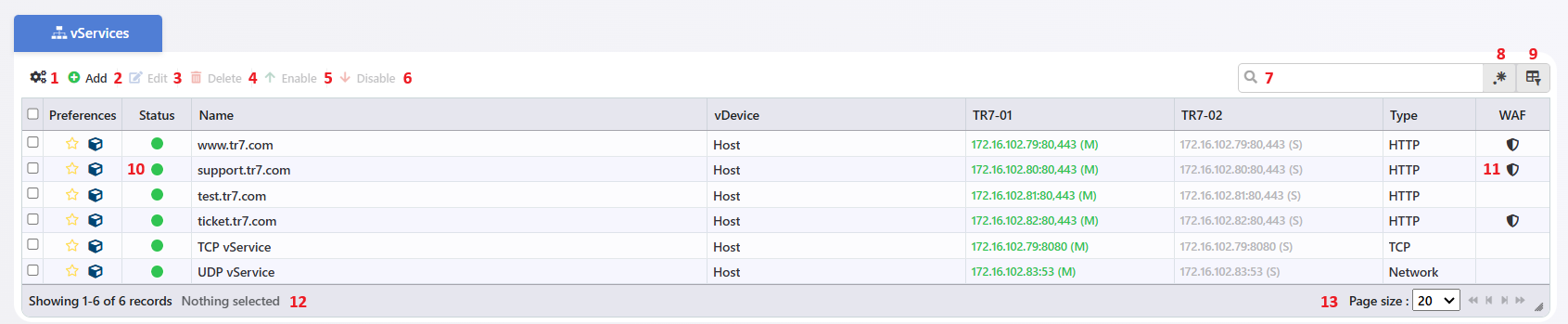

- 1 (Information to be Displayed in the Table)

It is selected which information will be shown or not in the table where the vServices are located.
Information that can be selected and selected by default;

• Preferences
• Status
• Name
• vDevice
• TR7 ASP Device Hostname > For more details click here.
• Type
• WAF
• Algorithm

- 2 (Add)

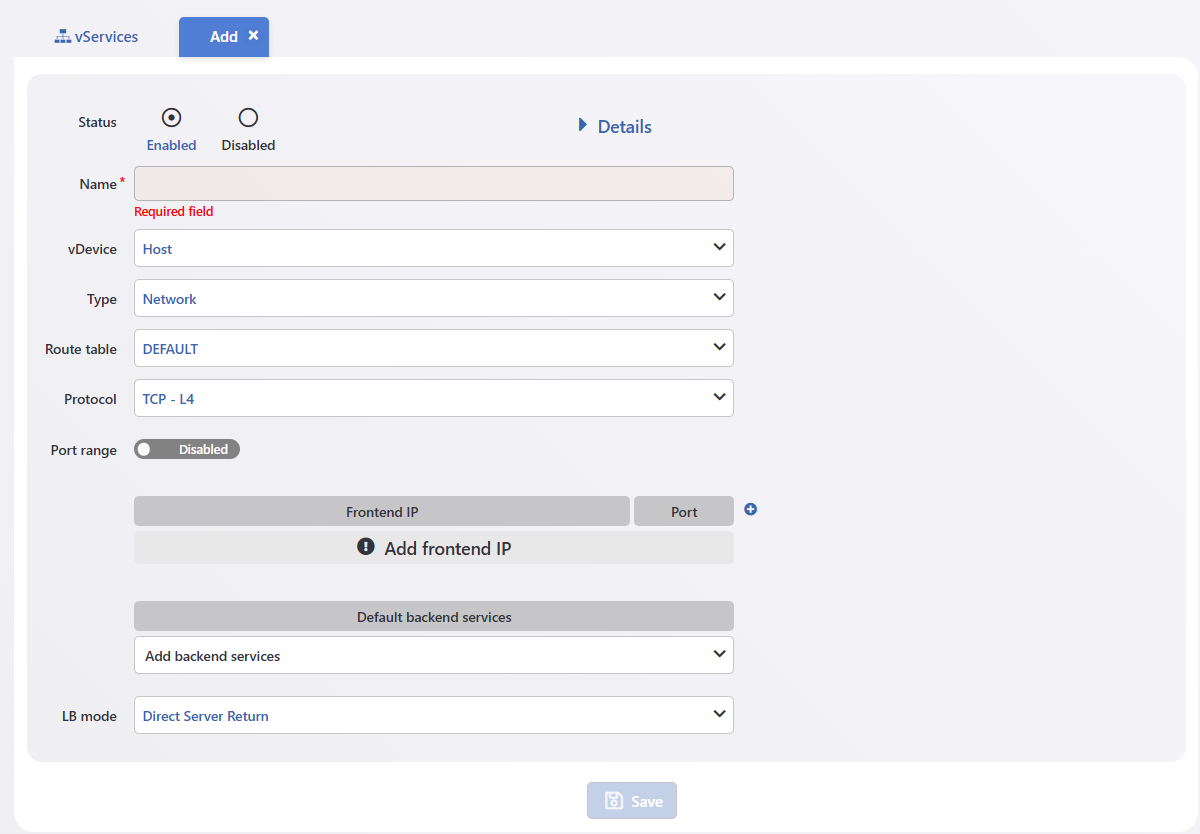

Clicking on the Add button opens a new vService creation form.

- 3 (Edit)

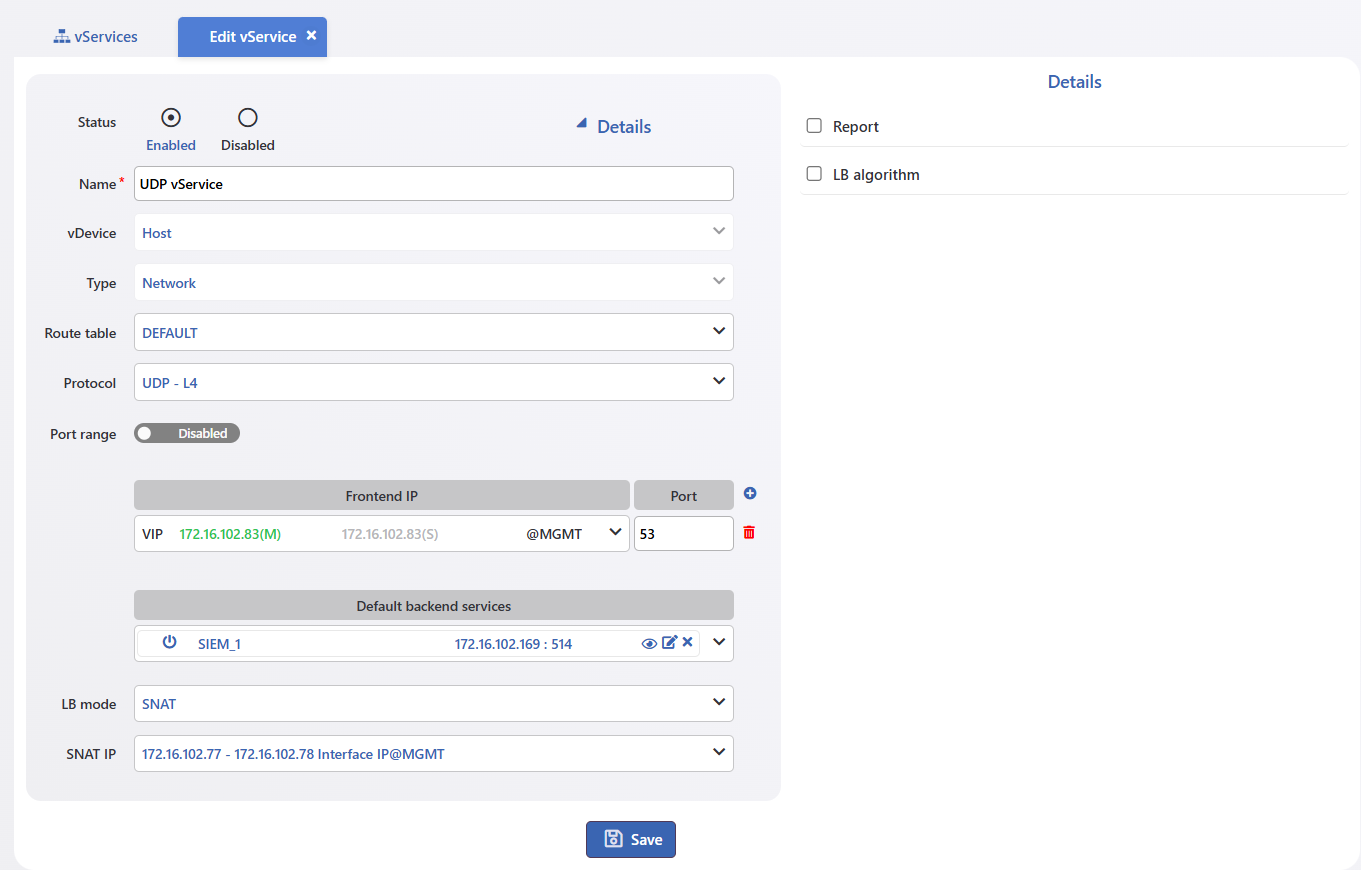

By clicking on the Edit button, the editing screen of the relevant vService is opened.

- 4 (Delete)

After selecting one or more vServices, click the Delete button to delete the relevant vServices on the TR7 ASP device.

- 5 (Enable)

When a Disabled vService is selected and the Enable service button is clicked, the vService is activated.

- 6 (Disable)

The vService is disabled by selecting an Enable vService and clicking the Disable button.

- 7 (Search)

It is used to search for all expressions in the table.

- 8 (RegExp Search)

Used to regexp search for all expressions in the table.

- 9 (Column Based Search)

Used to column based search for all expressions in the table.

- 10 (Status)

This is the section where the status of the vServices are displayed.

Blue > vService is starting.
Green > vService is active.
Red > vService is in an error state. Configurations should be checked.
Gray > vService is disabled.
Yellow > vService gives warning. For example, when 1 of 2 Backend Services fails to perform health check, the status of the vService changes to Warning. The traffic coming to the vService continues to be transmitted to the Backend Service standing on.

- 11 (WAF Status)

This is the section where the WAF status (Enabled/Disabled) of the vServices is displayed.

- Right Click Window

The following operations can be performed from the window opened by right-clicking on any vService.

- 12 (Page Information)

In the drop-down list, there is information about how many vServices there are and how many vServices are listed. When the vServices is selected from the left to delete, the information of the selected vServices is also displayed here.

- 13 (Page Size)

In the drop-down list, the maximum number of vServices to be listed is selected. You can switch between pages with arrow icons.

- Preview of Selected vService

By "vServices" tab, when any vService is clicked on, the window with the diagram of the relevant vService opens on the right side of the screen.

The preview can be closed by clicking the (x) button at the top right of the window that opens or clicking on the vService again.

- Status

In which case vService will be opened is selected.

Enabled > vService is opened actively.
Disabled > vService is opened as disabled.

- Name

Name of the vService is entered.

- vDevice

On which vDevice the vService to be created will be opened is selected. For details about vDevices click here.

- Type

The type of vService to be created is selected.

• HTTP
• L7 TCP
• Network

- Route Table

The Route Table in which the Backend Service will be created in is selected. After the selection is made, an IP address from the selected Route Table can be used. For details about Route Tables click here.

- Protocol

The protocol on which the Network vService to be created will work is selected.

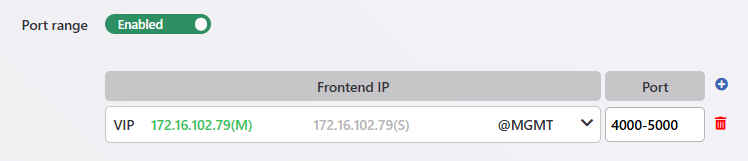

- Port Range

Port Range is activated in the required vServices. Then, after selecting the Frontend IP address, it is written in intervals in the Port section.

- Frontend IP - Port

The IP and Port information of the vService created here are set. Clicking the + icon will add tabs to select the Frontend IP addresses. The desired port number is written.

- Default Backend Services

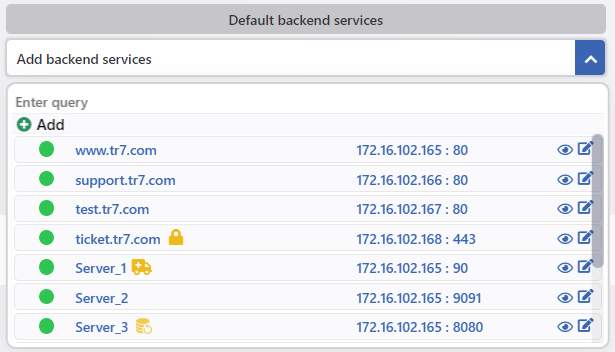

Backend Services to which the requests coming to the Frontend IP:Port will be forwarded are selected. In addition, a new Backend Service can be added on the vService screen by clicking the Add button in the drop-down list.

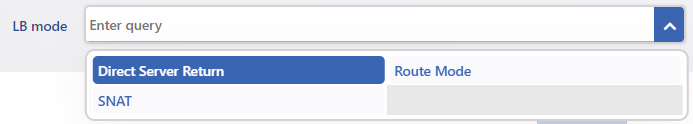

- LB Mode

Which mode the vService will use is selected.

- Save

By clicking the Save button, vService is created.

- Report

Report is activated in the vService. Profiles that have been added before, except the default profile, can be selected. By selecting more than one report profile at the same time, e-mails can be sent to different people at different periods. Adding a new Report profile can also be done on this screen. For more information click here.

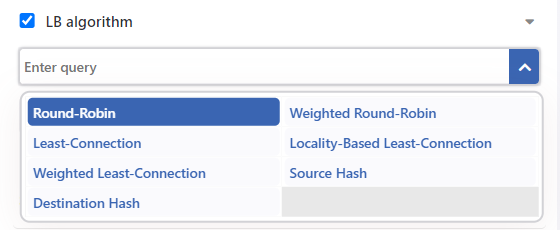

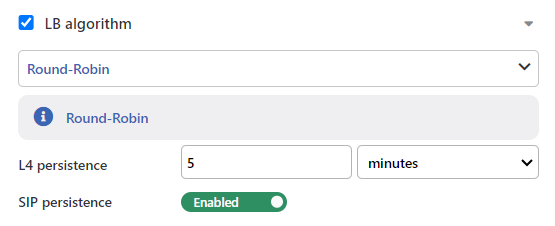

- LB Algorithm

When distributing the requests from the vService to the Backend Service, which algorithm will be used for this operation is selected. By default, Weighted Round Robin is selected.
