Local Services (Standalone)

What Is Local Services?

Local Services is the screen that carries out the service and power operations of the TR7 device from a single place. Operations such as restarting the TR7 configuration service and the health check (Health Check) service; rebooting or shutting down the server on which the device runs; and managing the vDevice services in the physical setups are done from here.

This page describes the single-device (Standalone) view. For the two-device view, the Local Services (Cluster) page can be looked at.

Restart

Service

Restarting the TR7 configuration service

Reboot

Device

Rebooting the device

Shutdown

Device

Shutting down the device

Health Check

Service

The status and the restarting of the health check service

Mgmt Access

Access

Restarting the management access service

Warning

The buttons and the rows displayed on the screen change according to the setup type: the Reload All vDevice Services button and the vDevices rows are displayed only in the physical (vDevice-supported) setups and when there is a vDevice defined on the device; they are not displayed in the virtual machine (VM) setups.

The Local Services Screen

By following the path Settings → Device Management → Local Services, the local service operations belonging to the TR7 device are displayed. In a single-device setup the screen comes in the single-device view below.

The screen consists of two layers: at the top the button bar on which the operation buttons are located, and below it the status row labeled Host. On the status row the Service Status and Health Check Service indicators take place side by side; on the left of every indicator there is a colored status dot and on its right a refresh icon that restarts that service.

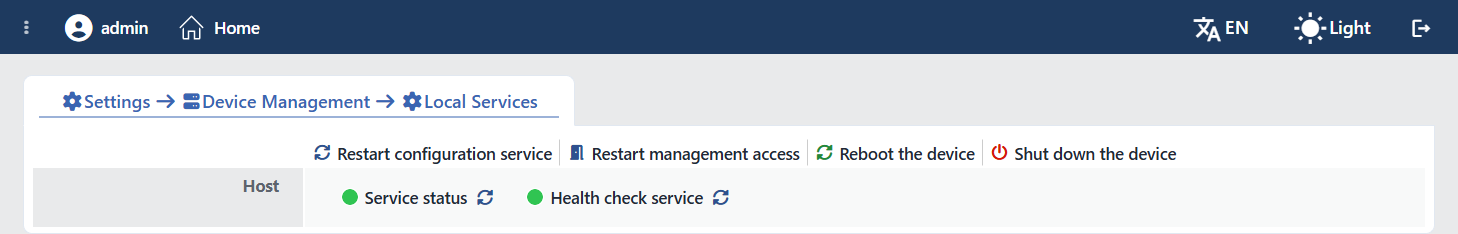

The Local Services Screen (Standalone)

TIP

Reaching the page via quick search

Instead of navigating the menu step by step, the related page is reached directly by using the search bar in the bottom left corner of the screen. The search bar opens with the Alt + T shortcut on Windows and Opt + T on macOS; typing the name of the feature being searched for is then sufficient.

Button Details

INFO

Restart Configuration Service Confirmation required

It restarts the TR7 configuration service. Confirmation is requested before the operation: "The configuration service will restart. Traffic keeps flowing, but management and monitoring pause for a few seconds." That is, while the service is restarting, the traffic is not interrupted; only the management interface and the monitoring pause for a short time. The button is enabled only while the service is connected.

INFO

Restart Management Access Confirmation required

It restarts the service that provides the management interface access of the device. Confirmation is requested before the operation: the management interface access is cut for a short time and the open sessions reconnect. It is the first operation to apply in the case of web interface access problems. The button is enabled only while the service is connected.

INFO

Reboot the Device Confirmation required

It reboots the virtual or physical server on which TR7 runs. Confirmation is requested before the operation; during the reboot the device cannot serve.

INFO

Shut down the Device Confirmation required

It shuts down the virtual or physical server on which TR7 runs. Confirmation is requested before the operation; after the device shuts down, it does not serve until it is powered on manually.

INFO

Reload All vDevice Services Physical setup

It reloads all the vDevice services on the device; the vDevices are reloaded one after another. This button runs without asking for confirmation. It is displayed only in the vDevice-supported (physical) setups and is enabled while the service is connected.

INFO

Service Status

Under the Host (Main Device) heading, it shows the connection status of the TR7 configuration service: while it is connected a green, and while it is not connected a gray status icon is displayed. The refresh icon on the row restarts the service after the configuration service confirmation question.

INFO

Health Check Service

It shows the status of the health check (Health Check) service of the host device: green while it is connected and red while it is not connected. The refresh icon on the row restarts the service after the confirmation question.

INFO

vDevices Physical setup

In the physical setups, separate status rows are displayed for every vDevice:

• vDevice Status: the operating status of the vDevice; green = running, gray = stopped/paused, the accent color = the transition states (starting, shutting down etc.),
• vDevice Service: the connection status of the vDevice service (green or red),
• Health Check Service: the health check service status of the vDevice (green or red).

The refresh icon of every row restarts the related service/vDevice after the confirmation question.
